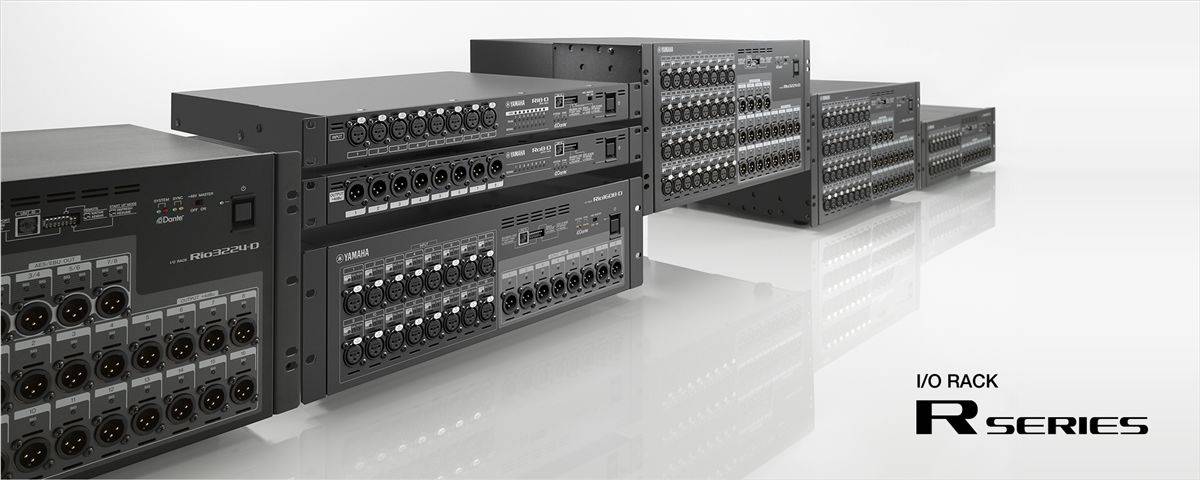

R Series (AD/DA)
Sublime Sound Liberated by Exceptional Flexibility
R Series I/O racks employ Dante network audio protocol for exceptional flexibility and freedom in setup and placement, while delivering natural, musical sound that brings out the full sonic potential of mixing consoles and other system components. They also allow redundancy for the utmost reliability in any application. Four models accommodate a wide range of I/O requirements.
R Series (AD/DA)
立即購買
R Series I/O racks employ Dante network audio protocol for exceptional flexibility and freedom in setup and placement, while delivering natural, musical sound that brings out the full sonic potential of mixing consoles and other system components.
產品信息如有變動，恕不另行通知。網站上信息僅供參考，一切以具體實物為準。
產品信息

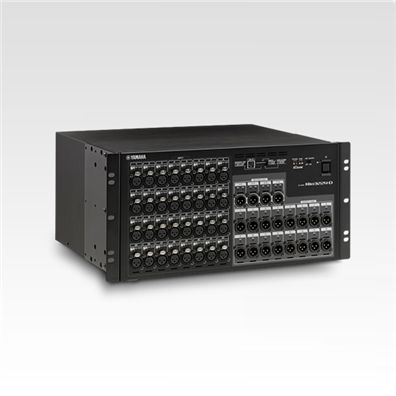

Rio3224-D2 網絡設備及擴展卡
Rio3224-D2是一款大容量、高性能的 I/O 機架接口箱，可與雅馬哈 CL 和 QL 系列調音臺以及 RIVAGE PM 系列兼容。它包含 32 個模擬輸入、16 個模擬輸出和 8 個數字 AES/EBU 輸出。 可直接接入 Dante 數字音頻網絡，實現靈活的系統配置。內置雙電源以實現高可靠性，字符/圖形顯示屏則提供輕松的視覺化確認。
- 32 個模擬輸入和 16 個輸出，以及 8 個數字輸出。
- 主、次接口支持冗余連接。還支持菊花鏈連接。
- 增益等參數的綜合顯示和本地控制。
- 內置雙電源供電，可靠性高。
- 功耗：120W
- 尺寸（寬 x 高 x 深）：480 x 220 x 368 毫米（18.9" x 8.7" x 14.5"）
- 凈重：13.5 千克（29.8 磅）

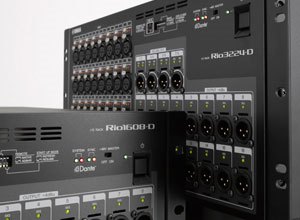

Rio1608-D2 網絡設備及擴展卡
Rio1608-D2是一款高性能的 I/O 機架接口箱，包含 16 個模擬輸入和 8 個模擬輸出，可與雅馬哈 CL 和 QL 系列調音臺以及 RIVAGE PM 系列兼容。可直接接入 Dante 數字音頻網絡，實現靈活的系統配置。內置雙電源以實現高可靠性，字符/圖形顯示屏則提供輕松的視覺化確認。
- 16 個模擬輸入和 8 個輸出。
- 主、次接口支持冗余連接。還支持菊花鏈連接。
- 增益等參數的綜合顯示和本地控制。
- 內置雙電源供電，可靠性高。
- 功耗：72W
- 尺寸（寬 x 高 x 深）：480 x 132 x 368 毫米（18.9" x 5.2" x 14.5"）
- 凈重：9.6 千克（21.2 磅）
Sonic performance that brings out the best in any system
The “natural, musical sound” that was a key element of the CL Series design policy is carried on without compromise in the R Series. Mechanical construction, circuit board layout, power supply, grounding, and parts selection have all been executed with meticulous attention to detail and quality, combined with exhaustive performance and listening tests at each stage of development. The result is eminently natural, musical sound.

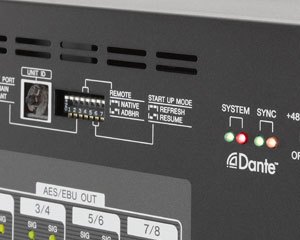

Dante network protocol contributes to greater system scalability and flexibility
The Dante network audio protocol developed by Audinate offers outstanding system scalability and flexibility. The required number of audio inputs and outputs can be placed wherever they are needed most, and the ability to implement redundant connections makes it possible to design a system that will keep going in the face of technical problems. With CL Series components a complete daisy-chained system can be easily set up without the need for network switches. Dante Controller software running on a personal computer allows flexible patching of devices on the network.
Support for CL series consoles as well as other Dante based systems
CL Series components are not the only Yamaha professional audio devices that will work with R Series I/O racks. With the Dante-MY16-AUD Mini-YGDAI card from Audinate installed, the M7CL, LS9, DME64N, and other compatible Yamaha pro audio gear can be used with Rio Series devices in capable and robust Dante network systems. The Rio3224-D, Rio1608-D, and Ri8-D head amplifiers can even be controlled directly from the interface of the M7CL, LS9, or other compatible console.
Automatic digital-stage compensation for analog gain changes (CL series only)
When multiple consoles are connected to one I/O rack unit, analog gain adjustments made by the console operators can result in unexpected level changes. The Rio Series features a gain compensation function that works with CL consoles to automatically compensate for analog gain adjustments in the digital stage, so that the sound level transmitted from the R Series I/O unit to the network remains constant.

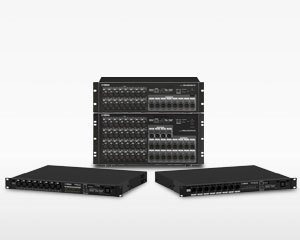

Four models flexibly accommodate any system requirements
In addition to the Rio3224-D and Rio1608-D models that were released together with the CL Series consoles, input-only Ri8-D and output-only Ro8-D models are now available, making up a four-model lineup that reinforces the underlying Rio Series concept: “the number of inputs and outputs you need, wherever you need them.” The Ri8-D can be used as a portable input rack, and the Ro8-D can be used for output in an amp room, for example. The possibilities are extensive, making it easy to optimally match systems of any size or complexity.
| Rio3224-D | Rio1608-D | Ri8-D | Ro8-D | ||
|---|---|---|---|---|---|
| Sampling frequency rate | External | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) | 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) / 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm) |
| Signal delay | Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz | Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz | Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz | Less than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz | |
| Total harmonic distortion | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs=44.1kHz, 48kHz / Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs=88.2kHz, 96kHz INPUT to OUTPUT, Input Gain = Min. | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs=44.1kHz, 48kHz / Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs=88.2kHz, 96kHz INPUT to OUTPUT, Input Gain = Min. | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs=44.1kHz, 48kHz / Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs=88.2kHz, 96kHz INPUT to OUTPUT, Input Gain = Min. | Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs=44.1kHz, 48kHz / Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs=88.2kHz, 96kHz INPUT to OUTPUT, Input Gain = Min. | |
| Frequency response | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz / +0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz / +0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz / +0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz | +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz / +0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz | |
| Dynamic range | 108dB typ., INPUT to OUTPUT, Input Gain = Min | 108dB typ., INPUT to OUTPUT, Input Gain = Min | 108dB typ., INPUT to OUTPUT, Input Gain = Min | 108dB typ., INPUT to OUTPUT, Input Gain = Min | |
| Hum & noise level | Equivalent input noise | -128dBu typ., Equivalent Input Noise, Input Gain=Max | -128dBu typ., Equivalent Input Noise, Input Gain=Max | -128dBu typ., Equivalent Input Noise, Input Gain=Max | -128dBu typ., Equivalent Input Noise, Input Gain=Max |
| Residual output noise | -88dBu Residual output noise, ST master off | -88dBu Residual output noise, ST master off | -88dBu Residual output noise, ST master off | -88dBu Residual output noise, ST master off | |
| Crosstalk | -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min. | -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min. | -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min. | -100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min. | |
| Power requirements | US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz | US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz | US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz | US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz | |
| Power consumption | 120W | 70W | 35W | 35W | |
| Dimensions | W | 480mm (18 7/8in) | 480mm (18 7/8in) | 480mm (18 7/8in) | 480mm (18 7/8in) |
| H | 232mm (9 1/4in) | 144mm (5 3/4in) | 44mm (1 3/4in) | 44mm (1 3/4in) | |
| D | 362mm (14 1/4in) | 361.5mm (14 1/4in) | 362mm (14 1/4in) | 359mm (14 1/8in) | |
| Net weight | 12.4kg (27.3lb) | 8.8kg (19.4lb) | 4.5kg (9.9lbs) | 4.4kg (9.7lbs) | |
| Accessories | Dante Virtual Soundcard license sheet | Dante Virtual Soundcard license sheet | - | - | |
| Others | Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃ | Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃ | Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃ | Temperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃ | |
Technical Specifications of Rio/Tio
Analog Input Characteristics
*1. XLR-3-32 type connectors are balanced.( 1=GND, 2=HOT, 3=COLD )
*2. In these specifications, 0dBu = 0.775 Vrms.
*3. All output DA converters are 24bit, 128times oversampling.
*4. There are switches inside the body to preset the maximum output level.
Analog Output Characteristics
*1. XLR-3-32 type connectors are balanced.( 1=GND, 2=HOT, 3=COLD )
*2. In these specifications, 0dBu = 0.775 Vrms.
*3. All output DA converters are 24bit, 128times oversampling.
*4. There are switches inside the body to preset the maximum output level.
Digital Input & Output Characteristics
Digital Output Characteristics
*1. Rio3224-D only
*2. XLR-3-32 type connectors are balanced.( 1=GND, 2=HOT, 3=COLD )
